This is a PREORDER. I am hoping for 4-6 weeks for shipping, but this is the first batch so please be patient.
This is the portal axle I wanted, ALL the underdrive to reduce torque twist. After a lot of designing, testing and tweaking the F2point75 is ready. With 36% underdrive just in the portal gears!

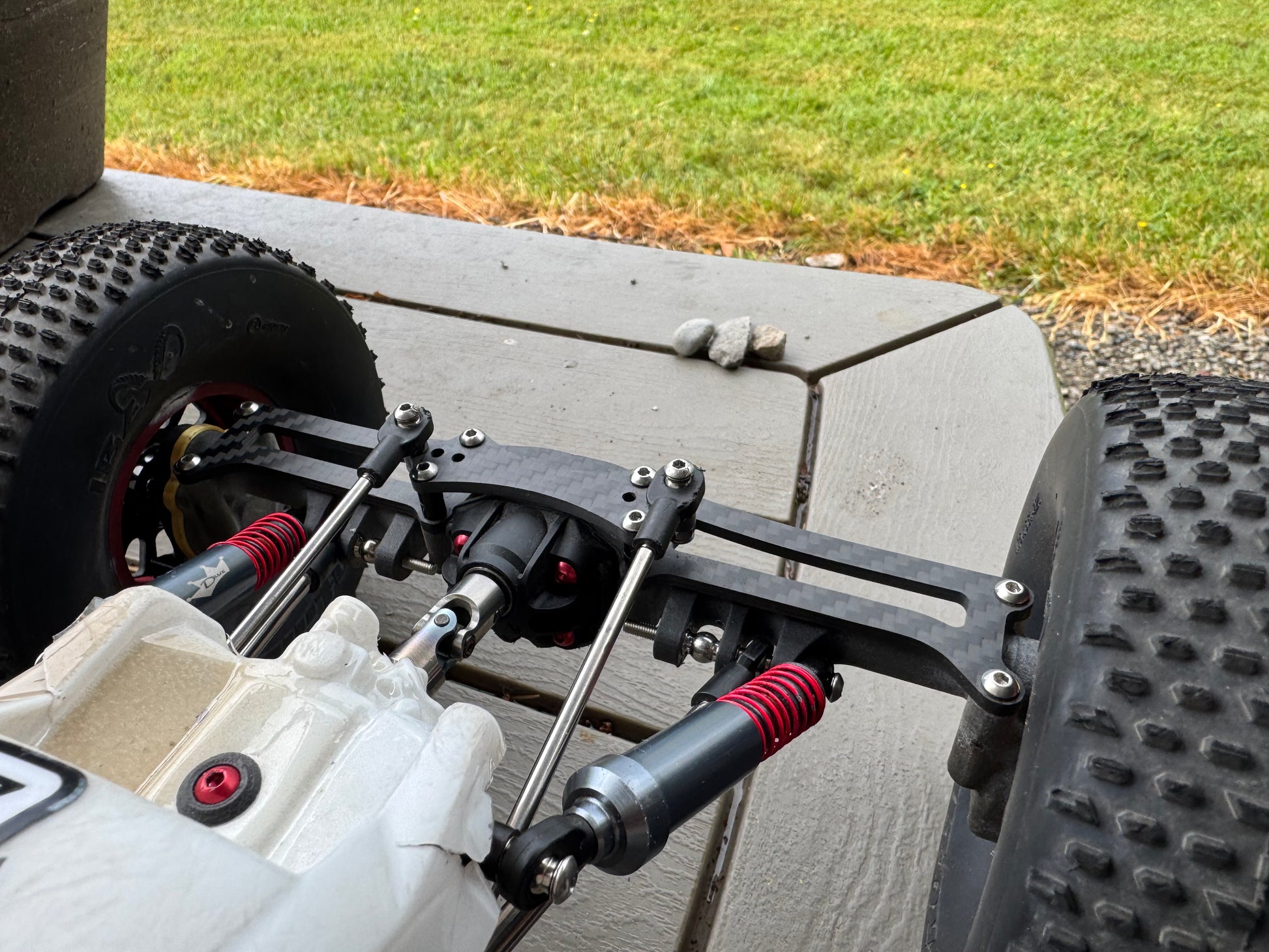

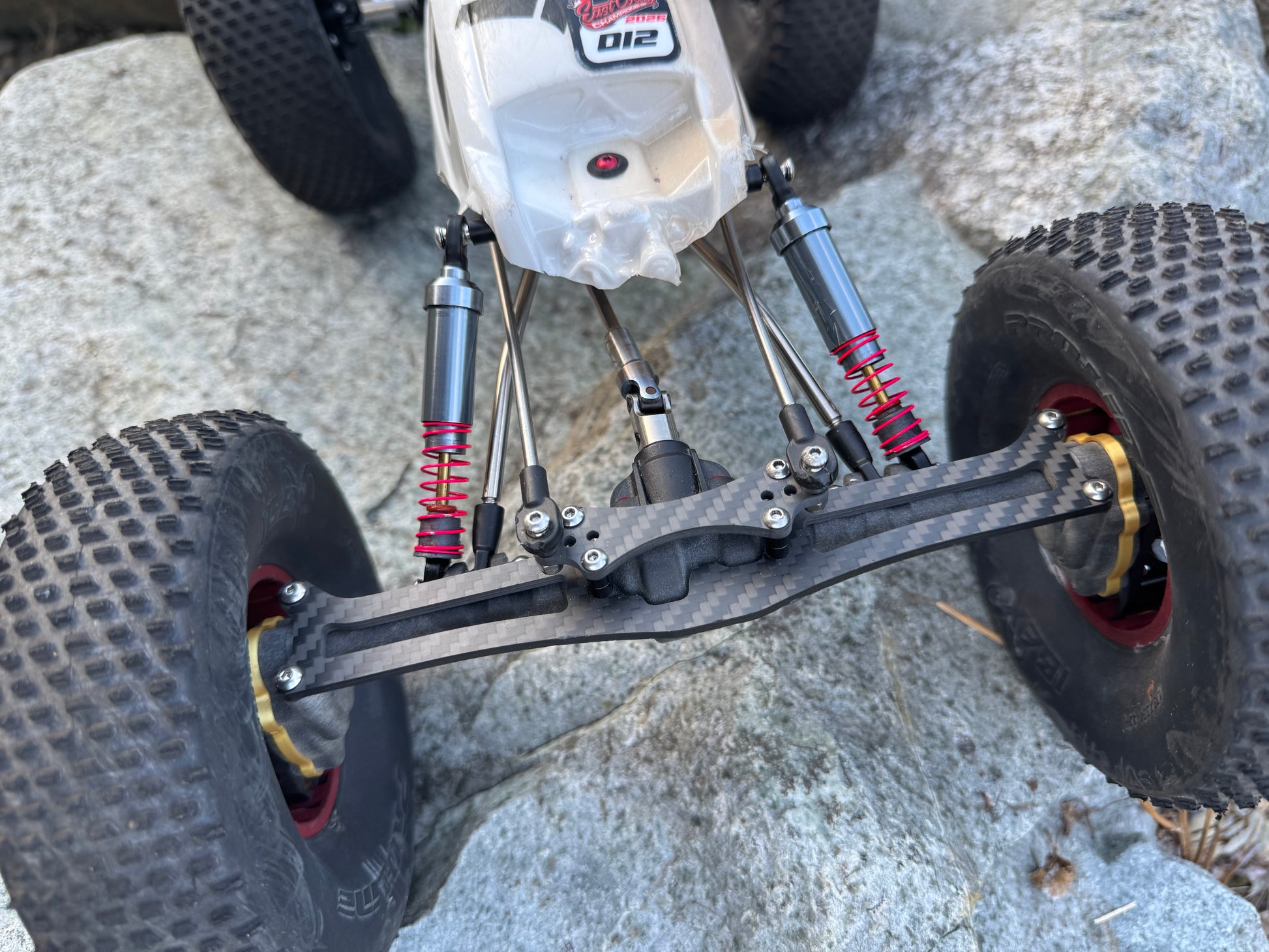

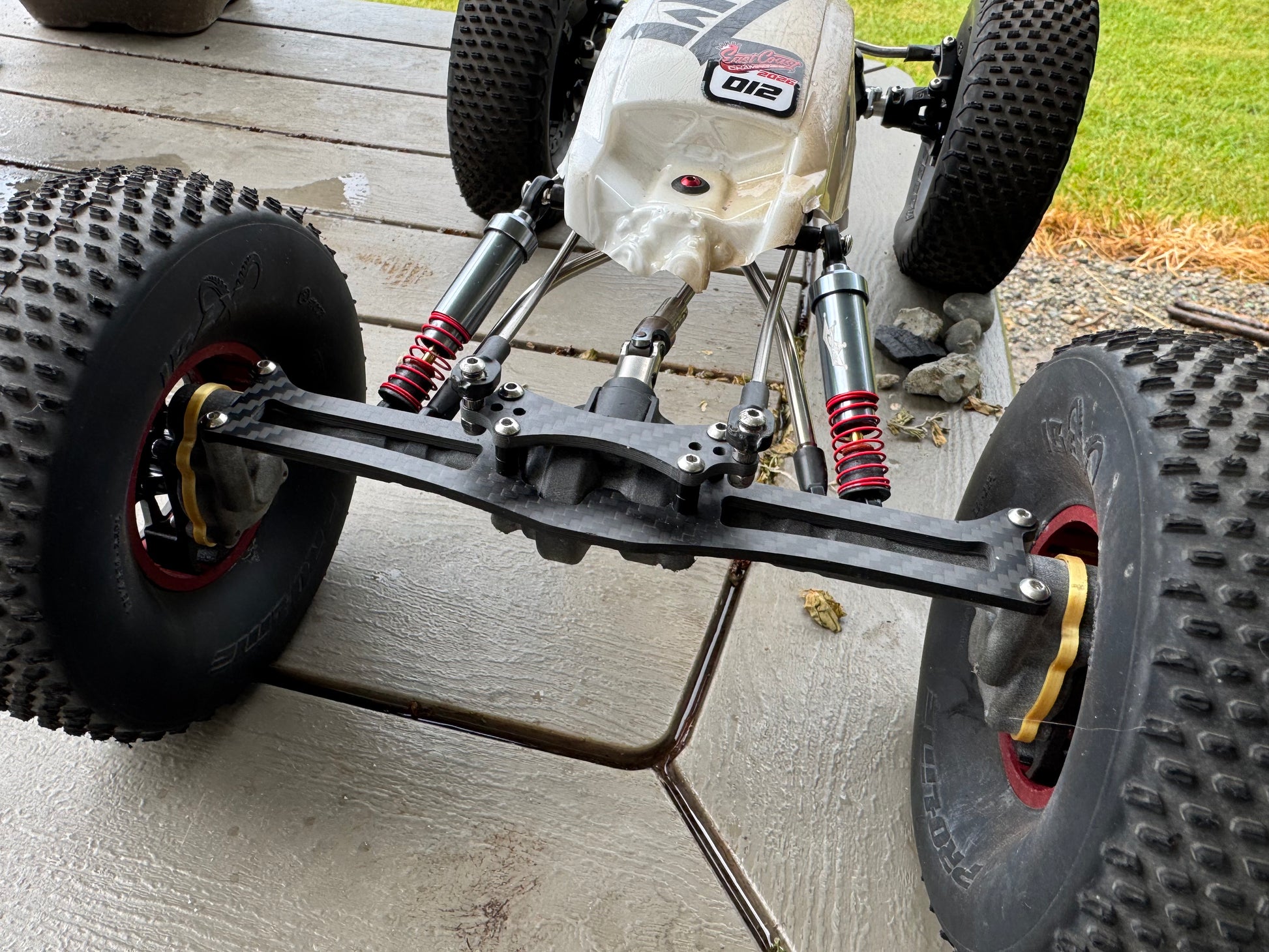

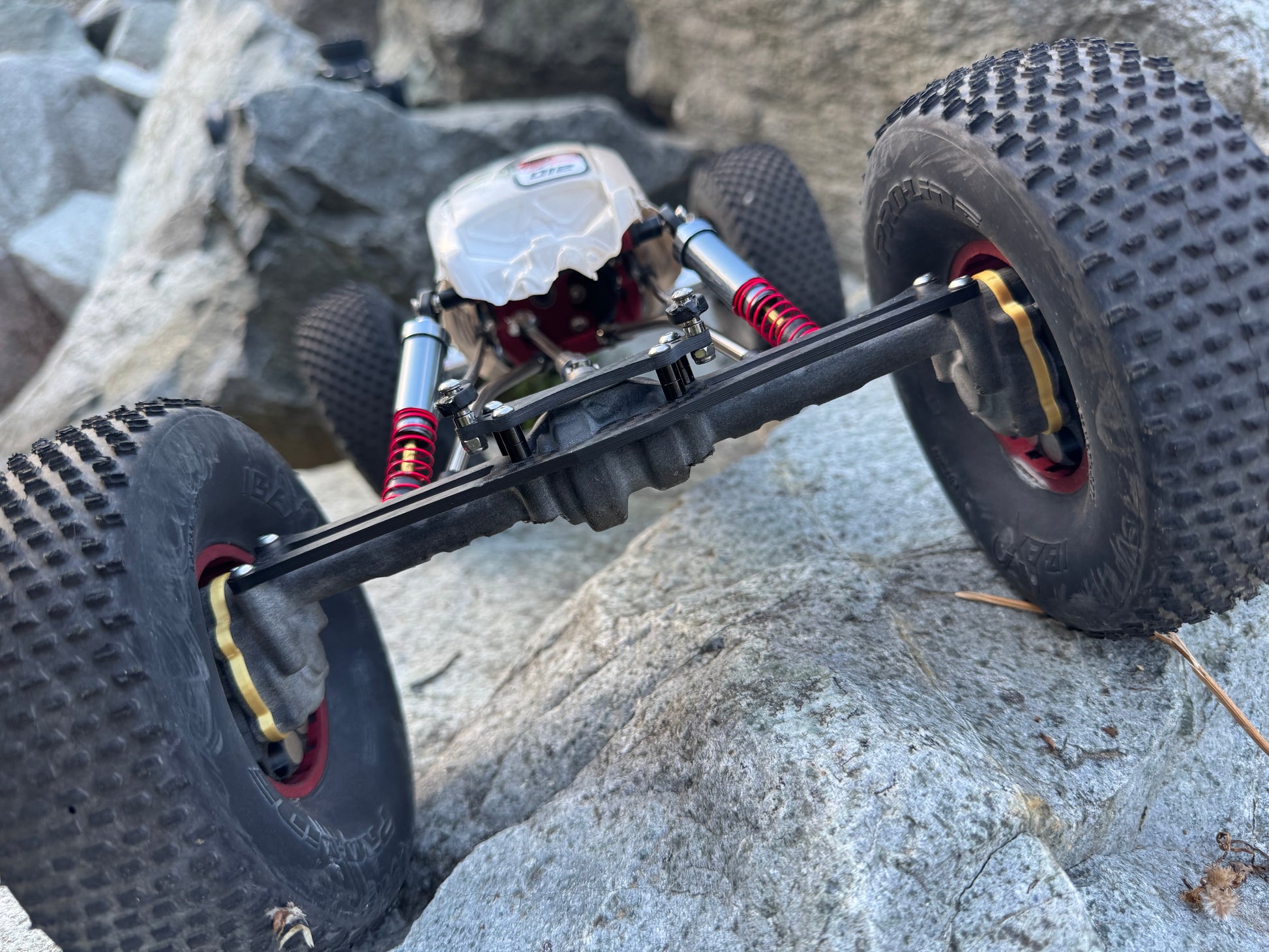

This axle is Capra width. It’s a mjf printed housing with integrated 3mm carbon brace and uses a Vanquish F10 3rd, AR44 r&p and locker, Capra axle shafts, 16/44 portal gears, Capra stub shafts and Capra bearings.
To run this axle you will need to gear the front axle and transmission up about 36% (45% if you run 8/33 ring and pinion). That means going up about 4-5 teeth on your pinion and running all stock gears in the front axle. My recommendation to start is 12/23 portal gears with 8/33 r&p front and 8/33 r&p in the rear. This will give you 36% underdrive and reduce the gear ration in the rear axle 45% of traditional Capra gearing.
The axle will come as:
Base - Housing, carbon brace and link mount, 44t gears and hardware
Complete axle - Housing, Meus 8/33 r&p, Dlux Ti Capra shafts, 16/44 portal gears, Dlux stub shafts and hexes. Assembled
