HardPark MOA axle

I will be selling these while HardPark is closed for a bit.  They will be sold on a preorder basis.  When I have 5-10 orders i will put in my order.  Fulfillment can take 2-3 weeks.

Pinions and rear lockout kits sold separately.

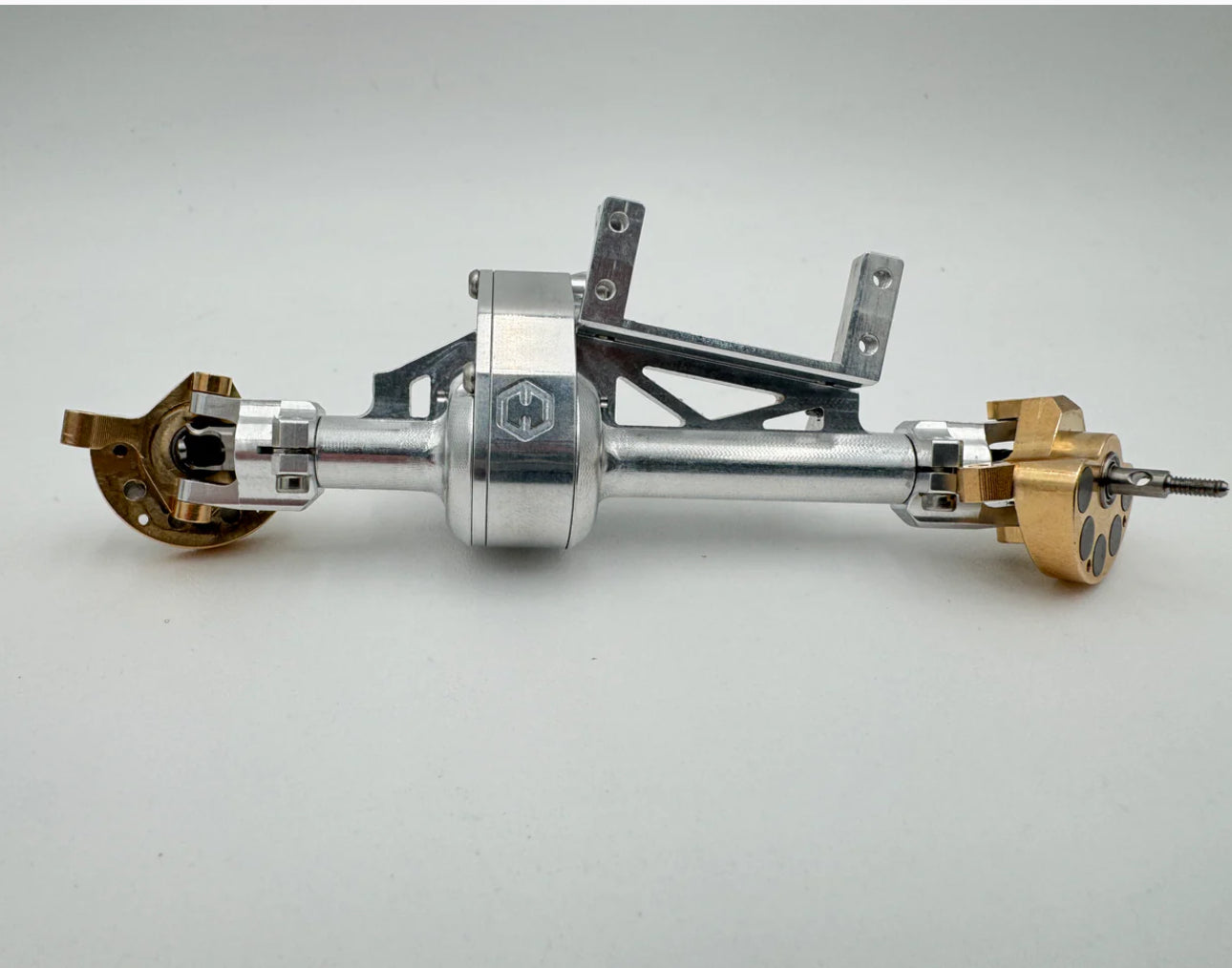

These beauties are machined from 7075 aluminum and feature Gr. 5 mod.3 titanium gears and axle shafts. They also have adjustable c hubs like our shaft axles. Speaking of adjustability, the servo mount is slotted, and the upper link riser can be attached in two different positions. They also come with Gr.5 titanium steering links. You'll have to bend the drag link to suit your own setup. As with all of our axles they come standard with Low Blow knuckles.

Roughly 120mm wide, hex to hex using stock size hex's.

Gear ratio: 90.1:1
Motor mount spacing: 9mm, designed around the Micro Komodo and similar size motors.

Lower link mounts are 11mm wider than stock and shock mounts are 12mm wider than stock.

The motor guard (optional) will need notched for the wires to pass through

NOTES

These are not a universal fit, drop in axle. They will bolt on the Dementor and Valkyrie with our links. Other setups will require modifications.

The pinion are proprietary and attach with the included screw that you install and cut off.

You will need to bend your links to clear the motor and transmission.

Steering links are: Tie rod - 93.5mm, add length for your bends. Draglink will depend on how you orient your servo and horn. @enlightenedrc on IG has a good kit.

A dual esc will be needed, BKTT has them.

https://www.bigkidtinytruckrcs.com/products/bktt-escape32-cupcake-duo-esc-boasting-2-escs-in-on-for-those-dual-motor-and-moa-setups

You will need a radio that has the ability to mix the throttle channel. I chose the Flysky Noble NB4. Please do your homework on how to set up your radio.

AXLE ONLY INCLUDES

1 - Axle with Servo and Link Mounts
